•  Compatible with XENPAK MSA Rev.3.0
•  Support of IEEE802.3ae up to 300m (OM3 MMF)
•  Power Consumption 1.8W (typ.)
•  Temperature Range 0 to 70°C
•  Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
•  Adaptable Power Supply (APS:+1.2V)
•  SC duplex connector
•  Hot pluggable 70-pin connector with XAUI electrical interface
•  Management and control via MDIO 2-wire interface
•  Compatible with RoHS

•  10GBASE SR 10G Ethernet

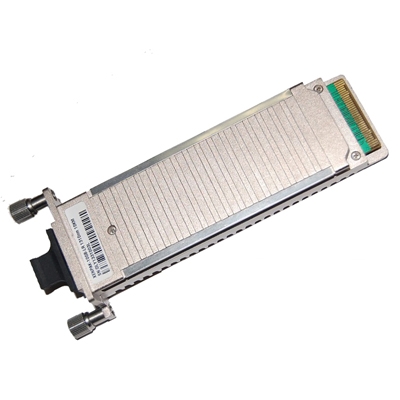

The RXK-8596-S3D is a highly integrated、Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.
