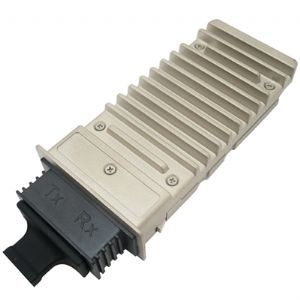

10G CWDM X2 80km 1470nm~1610nm

10G CWDM X2 80km 1470nm~1610nm
Item : RX2C-xx96-xxCD
Name Value

Form Factor X2 CWDM
Data Rate 10G
Distance 80km
Wavelength 1470nm~1610nm
LD DFB
PD APD
Connector SC
DDM Y
Reachoptics' 10G CWDM X2 80km 1470~1610nm Optical Transceiver module with pretty good quality and price, for three years warranty. Fast lead time, good after-sale service. 100% compatible for Cisco,HP,H3C,Dlink,Juniper etc. OEM Service is acceptable.

RX2C-xx96-xxCD

80KM 10 Gbp/s CWDM X2 ZR Transponder

Description

Reachoptics' CWDM X2 transceiver series is designed for CWDM optical data communications such as 10G Ethernet 10GBASE-ER/EW/ZR and 10G Fibre Channel applications. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. Maximum optical budget is 23dB .

The transceiver consists of two sections: The transmitter section consists of a directly modulated uncooled CWDM DFB/EML laser, driver and signal conditioner. The receiver section incorporates a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and signal conditioner or APD.

Features

X2 MSA Compliant
70-PIN connector
SC duplex receptacle package
Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
Cooled EA-DFB/APD
1470nm~1570nm link length up to 80km (1600ps/nm)
1590nm~1610nm link length up to 70km (1400ps/nm)
Power supply: +5.0 V, +3.3 V, APS:+1.2 V
Power Dissipation 9W Maximum
0ºC to 70ºC Operating Case Temperature
Digital Diagnostic Monitoring
Management and control with MDIO 2-wire bus
XAUI electrical interface 4 x 3.125 Gb/s Ethernet
RoHS compliant and lead free

Applications

10 Gb/s Ethernet transmission systems

Mechanical Dimensions

Ordering information

Part Number	Product Description
RX2C-4796-80CD	X2, 1470nm 80km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/APD
RX2C-4996-80CD	X2, 1490nm 80km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/ APD
RX2C-5196-80CD	X2, 1510nm 80km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/ APD
RX2C-5396-80CD	X2, 1530nm 80km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/ APD
RX2C-5596-80CD	X2, 1550nm 80km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/ APD
RX2C-5796-80CD	X2, 1570nm 80km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/ APD
RX2C-5996-70CD	X2, 1590nm 70km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/ APD
RX2C-6196-70CD	X2, 1610nm 70km(ZR), 0ºC ~ 70ºC, Cooled EA-DFB/ APD

Name	Value
Form Factor	X2 CWDM
Data Rate	10G
Distance	80km
Wavelength	1470nm~1610nm
LD	DFB
PD	APD
Connector	SC
DDM	Y
