• Compliant with SFF-8431 and IEE802.3ae
• Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
• Cooled EML transmitter and APD receiver
• Wavelength selectable to ITU-T standards covering CWDM grid wavelengths  1470nm~1570nm link length up to 80km (1600ps/nm)
• 1590nm~1610nm link length up to 70km (1400ps/nm)
• Low Power Dissipation 2W Maximum
• -5ºC to 70ºC Operating Case Temperature
• Single 3.3V power supply Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
• RoHS compliant and lead free

• 10GBASE-ZR

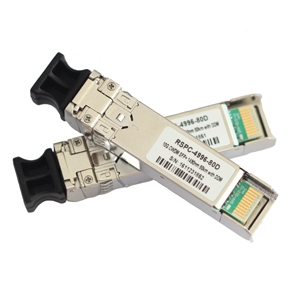

Reach Optics' SFP+ZR CWDM Transceiver is designed for 10GBASE-ZR applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA.

All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
