• Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
• Single 3.3V Supply
• Up to 10km on 9/125um SMF
• Two types：

• Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
• SFP+ MSA SFF-8431 Compliant
• Digital Diagnostic SFF-8472 Compliant
• RoHS compliant and Lead Free
• Operating case temperature:Standard:  0 ~ 70 °C

• 10GBASE-LR at 10.3125Gbps
• 10GBASE-LW at 9.953Gbps
• Other Optical Links

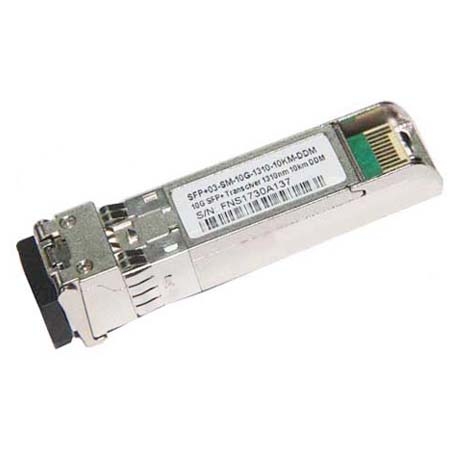

The RSPB-273396-10CD & RSPB-332796-10CD series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The RSPB-273396-10CD module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; RSPB-332796-10CD module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
