• Compliant with SFF-8431 and IEE802.3ae
• Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates
• Cooled EML transmitter and APD receiver
• link length up to 80km
• Low Power Dissipation 1.4W Typical (Maximum:2W)
• -5ºC to 70ºC Operating Case Temperature
• Single 3.3V power supply
• Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
• RoHS compliant and lead free

• 10G Ethernet
• 10G Fiber Channel (with/without FEC)

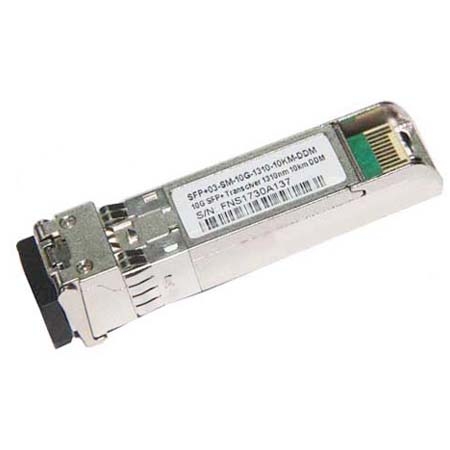

Reach Optics' SFP+ZR Transceiver is designed for 8.5G/10G Fiber- Channel and 10GBE applications. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.

Reach Optics' SFP+ZR Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
