• Data-rate of 1.25Gbps operation

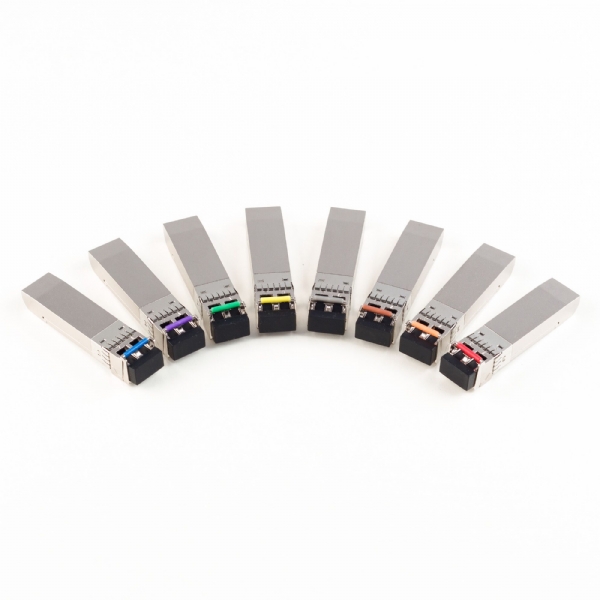

• 9 CWDM DFB wavelengths laser and PIN photodetector for 80km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring:
• Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature:
• Standard : 0 to +70°C

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

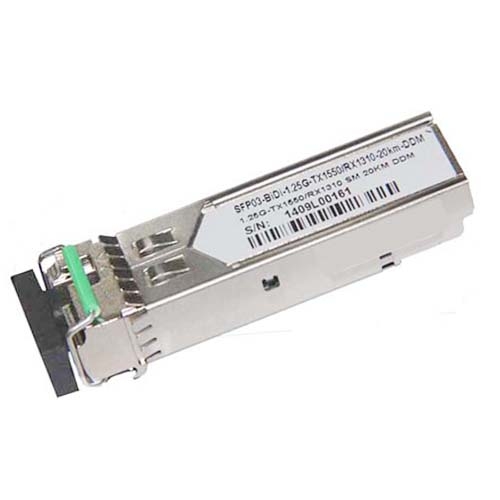

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
