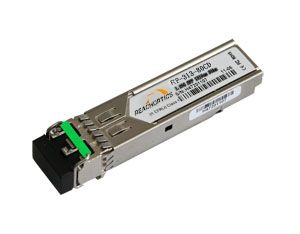

2.5G BIDI SFP 40km 1550nm TX / 1490nm RX Cisco Compatible Optical Transceiver
2.5G BIDI SFP 40km 1550nm TX / 1490nm RX Cisco Compatible Optical Transceiver
  • 2.5G BIDI SFP 40km 1550nm TX / 1490nm RX Cisco Compatible Optical Transceiver
  • Item : RSB-5425x-40C(D)
  • NameValue
    Form FactorSFP BI-DI
    Data Rate2.5G
    Distance40km
    WavelengthT1550/R1490
    LDDFB
    PDPIN
    ConnectorLC/SC
    DDMY/N
  • Reachoptics' 2.5G BIDI SFP Optical Transceiver 40km Tx1550nm/Rx1490nm module with pretty good quality, copetitive price, fast delievery, best after-sale service and for three years warranty. OEM Service is offered. All Reachoptics' SFP Transceiver compati
Product Description
RSB-5425x-40C(D)
2.488Gbps SFP Bi-Directional Transceiver, 40km Reach
1550nm TX / 1490nm RX
Features
  • Dual data-rate of 2.488Gbps/2.125Gbps operation
  • 1550nm DFB laser and PIN photodetector for 40km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring:
  • Internal Calibration or External Calibration
  • Compatible with SONET OC-48 system
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
  • Standard : 0 to +70°C
Applications
  • SDH STM-16 and SONET OC-48 system
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems
Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps/2.125Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Ordering information
Part Number Product Description
RSB-5425S-40C 1490nm, 2.488Gbps, SC,40km, 0°C~+70°C
RSB-5425S-40CD 1490nm, 2.488Gbps, SC,40km, 0°C~+70°C, With Digital Diagnostic Monitoring
RSB-5425L-40C 1490nm, 2.488Gbps, LC,40km, 0°C~+70°C
RSB-5425L-40CD 1490nm, 2.488Gbps, LC,40km, 0°C~+70°C, With Digital Diagnostic Monitoring
