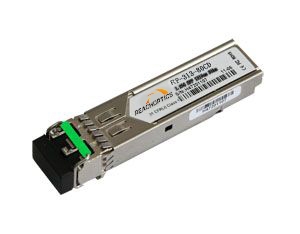

2.5G BIDI SFP 20km 1310nm TX / 1550nm RX Cisco Compatible Optical Transceiver

2.5G BIDI SFP 20km 1310nm TX / 1550nm RX Cisco Compatible Optical Transceiver
Item : RSB-3525x-20C(D)
Name Value

Form Factor SFP BI-DI
Data Rate 2.5G
Distance 20km
Wavelength T1310/R1550
LD DFB
PD PIN
Connector LC/SC
DDM Y/N
Reachoptics' 2.5G BIDI SFP 20km Tx1310nm/Rx1550nm Optical Transceiver module with pretty good quality and competitive price, fast delievery, best after-sale service, for three years warranty, 100% compatible for Cisco, HP, Dlink, Juniper etc. OEM Service

Product Description

RSB-3525x-20C(D)

2.488Gbps SFP Bi-Directional Transceiver, 20km Reach

1310nm TX / 1550 nm RX

Features

Dual data-rate of 2.488Gbps/2.125Gbps operation
1310nm DFB laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-48 system
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C

Applications

SDH STM-16 and SONET OC-48 system
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps/2.125Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Ordering information

Part Number	Product Description
RSB-3525S-20C	1310nm, 2.488Gbps, SC,20km, 0°C~+70°C
RSB-3525S-20CD	1310nm, 2.488Gbps, SC,20km, 0°C~+70°C, With Digital Diagnostic Monitoring
RSB-3525L-20C	1310nm, 2.488Gbps, LC,20km, 0°C~+70°C
RSB-3525L-20CD	1310nm, 2.488Gbps, LC,20km, 0°C~+70°C, With Digital Diagnostic Monitoring

Name	Value
Form Factor	SFP BI-DI
Data Rate	2.5G
Distance	20km
Wavelength	T1310/R1550
LD	DFB
PD	PIN
Connector	LC/SC
DDM	Y/N
