| Name | Value |
| Form Factor | SFP Media Converter |
| Data Rate | 10/100M |
| Distance | 20km |
| Wavelength | 1310nm |
| LD | FP |
| PD | PIN |
| Connector | LC |
| DDM | RJ45 |

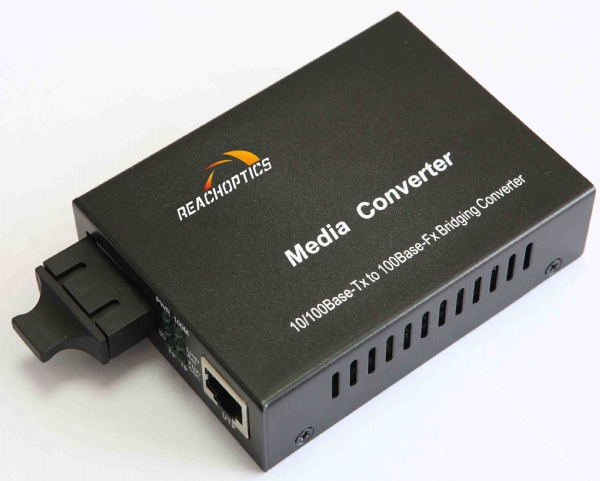

The high performance Fiber Link Ethernet Extenders provide up to 120KM of Ethernet extension over single-mode fiber. The Model RS-1100 is ideal for campus networks, connecting remote LANs, and facilitating the optical last-mile connection to the metropolitan-area network (MAN) and beyond.
It provides a cost effective plug-and-play solution for long-range 10Base-T or 100Base-TX Ethernet extensions and added benefit of 10/100M auto-negotiation, making it the perfect choice when planning future upgrades of 10Base-T networks.
Ethernet Fiber converters are ultra-miniature in size and feature a shielded RJ45 Ethernet jack, SFP style fiber-optic connections. Built-in auto-sensing capabilities enable full or half-duplex Ethernet operation with no configuration required!
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX |
| Wavelength | Mulitmode:850; Single-mode:1310/1550nm |
| Distance | Category-5 twisted pair: 100m Fiber：multi-mode 50/125，62.5/125μm（the max distance up to 2km) Fiber：Single -mode 8/125，8.7/125，9/125，10/125μm（the max distance up to 20 -120km）
|
| Port | One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: LC(50, 62.5/125μm) Single mode, dual fiber: LC(9/125μm) |
| Conversion means | SFP Media conversion |
| MAC address table | 1K |
| Buffer space | 256kbit |
| Flow control | Full duplex: flow control;
Half duplex: back pressure |
| Delay | Store-and-forward: 9.6μs; cut-through: 0.9μs |
| BER | <19-9 |
| MTBF | 100,000 hours |
| LED indicator | PWR (power supply); FX LINK/ACT (optical link/action) FDX (FX full duplex), TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs), FX 100 (100M transmission rate of optical fiber) |
| Power supply | External 5VDC input |
| Power consumption | 4W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions | 26mmx 70mm x 95mm |
| Model | wavelength | Fiber | TX port | Fiber Mode | TX power (dBm) | RX Sen. | Distance |
| (dBm) | |||||||
|
RS-1100-02 |
850nm | LC | RJ-45 | MM,Duplex | -17~-12 | ≤-20.0 | 2km |
|
RS-1100-L2 |
1310nm | LC | RJ-45 | SM, Duplex | -3~-8 | ≤-23.0 | 20km |
| RS-1100-L4 | 1310nm | LC | RJ-45 | SM, Duplex | -3~-0 | ≤-25.0 | 40km |
| RS-1100-L8 | 1550nm | LC | RJ-45 | SM, Duplex | 1 | ≤-27.0 | 80km |
| RS-1101-L2A | T1310/R1550 | LC | RJ-45 | SM,BI-DI | -8~-3 | ≤-23.0 | 20km |
| RS-1101-L2B | T1310/R1550 | LC | RJ-45 | SM,BI-DI | -8~-3 | ≤-23.0 | 20km |
| RS-1101-L4A | T1310/R1550 | LC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 40km |
| RS-1101-L4B | T1550/R1310 | LC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 40km |
| RS-1101-L6A | T1490/R1550 | LC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 60km |
| RS-1101-L6B | T1550/R1490 | LC | RJ-45 | SM,BI-DI | -3~0 | ≤-23.0 | 60km |
