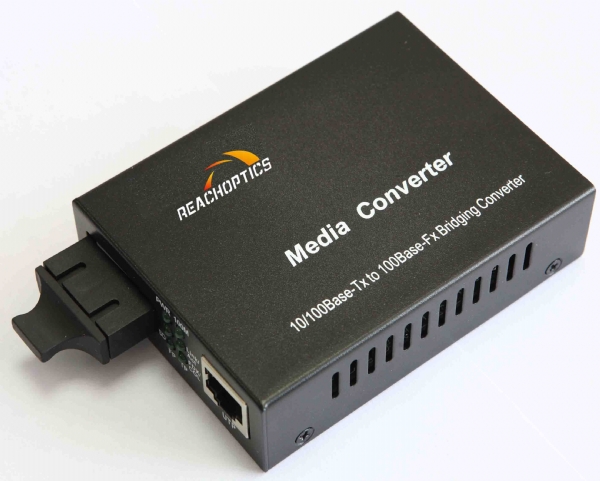

10/100M Media Converter 20km
10/100M Media Converter 20km
  • 10/100M Media Converter 20km
  • Item : RM-1100-L2
  • NameValue
    Form FactorMedia Converter
    Data Rate10/100M
    Distance20km
    Wavelength1310nm
    LDFP
    PDPIN
    ConnectorSC/FC
    DDMRJ45
  • The media converter transform the transmission media of Ethernet signal

    from CAT5 to optical fiber. it can extend the transmission distance to

    several kilometer or hundred kilometer.
    Using media converter is a economical solution to achieve long
Product Description
RM-11 series Ethernet media converter
10/100M Media Converter
Features
  • 10/100Mbps auto-sensed, facilitating network upgrade
  • Built-in efficient switching core to implement flow control and reduce broadcast packets
  • Full-duplex and half-duplex auto-sensed
  • Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
  • Supporting Link Failure Alert (LFA) with optional dip-switch(unique)
  • Supporting half /full-duplex of FX and link failure alert with optional dip-switch
  • Supporting 10/100Mbps store-and-forward and 100Mbps cut-through ?transmissio?with optional dip-switch(unique)
  • Supporting low-timelag transmission
  • Supporting the transmission of extra-long packets up to1600 bytes and VLA ?packets
  • Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
  • Supporting STP to form a redundant network
  • ?Extremely low power consumption (less than 2W), low heat, reliable and ?stable?performance, and long lifetim
Application
  • 10/100Mbps fast optical Ethernet long-distance transmitting network
Description

RM-11 series Ethernet media converter can interconvert electrical signals of 10Base-T and 100Base-TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through). It supports transmission in multi-mode dual fiber, single-mode dual fiber, single-mode single fiber.

Technical Indexes
Parameter Specifications
Access Mode 10/100Mbps
Standard IEEE802.3 10Base-T, IEEE802.3u 100Base-TX ,100Base-FX ;
Wavelength Mulitmode:850/1310nm; Single-mode:1310/1550nm (Option)
Distance: Category-5 twisted pair: 100m Fiber:multi-mode 50/125,62.5/125μm(the max distance up to 2km or 5km Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20 -120km
Port One RJ45 port:
For connecting STP/UTP category-5 twisted pairs One optical port:
Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm)
Conversion means Media conversion, store-and-forward/cut-through
MAC address table 1K
Buffer space 1Mbit
Flow control Full duplex: flow control;Half duplex: back pressure
Delay Store-and-forward: 9.6μs; cut-through: 0.9μs
BER <19-9
MTBF 100,000 hours
LED indicator PWR (power supply); FX LINK/ACT (optical link/action)
FDX (FX full duplex), TP LINK/ACT (twisted pairs link/action)
TP 100 (100M transmission rate of twisted pairs),
FX 100 (100M transmission rate of optical fiber)
Power supply DC5V 1A (external), AC220 0.5A/DC-48 (internal)
Power consumption <2W
Operating temperature -10~55oC
Operating humidity 5%~90%
Maintaining temperature -40~70oC
Maintaining humidity 5% ~ 90% non-condensing
Dimensions External power supply: 26mmx 71mm x 94mm
Built-in power supply: 40mm x 110mm x 140m
Ordering Information
Part Number wavelength Fiber TX port Fiber Mode TX power (dBm) RX Sen. (dBm) Distance

RM-1100-02

850/1310nm SC/ST RJ-45 MM,Duplex -22 to -12 ≤-30 2km
RM-1100-L2 1310nm SC/FC RJ-45 SM, Duplex -15 to -8 ≤-37 20km
RM-1100-L4 1310nm SC/FC RJ-45 SM, Duplex -8 to -3 ≤-37 40km

RM-1100-L6

1310nm SC/FC RJ-45 SM, Duplex -3 to 0 ≤-37 60km
RM-1100-L8 1550nm SC/FC RJ-45 SM, Duplex -8 to -3 ≤-40 80km
RM-1100-10 1550nm SC/FC RJ-45 SM, Duplex -3 to 0 ≤-40 100km
RM-1100-12 1550nm SC/FC RJ-45 SM, Duplex 0 to 3 ≤-40 120km
RM-1100-L2A T1310/R1550 SC RJ-45 SM,BI-DI -13 to -8 ≤-36 20km
RM-1100-L2B T1550/R1310 SC RJ-45 SM,BI-DI 13 to -8 ≤-36 20km
RM-1100-L4A T1310/R1550 SC RJ-45 SM,BI-DI -8 to -3 ≤-36 40km
RM-1100-L4B T1550/R1310 SC RJ-45 SM,BI-DI -8 to -3 ≤-36 40km
RM-1100-L8A T1310/R1550 SC RJ-45 SM,BI-DI -5 to -3 ≤-36 80km
RM-1100-L8A T1550/R1310 SC RJ-45 SM,BI-DI -5 to -3 ≤-36 80km
