MiNi Type PLC Splitter
MiNi Type PLC Splitter
  • MiNi Type PLC Splitter
  • Item : R-PLC-mini
  • 1.MiNi PLC Splitter
    2.Factory
    3.Good uniformity and low insertion loss
    4.Low Insertion Loss and PDL
    5.ISO 9001,RoHS,FCC, CE
    6.Fast delivery
    7.OEM,ODM,Customer Label available
Product Description

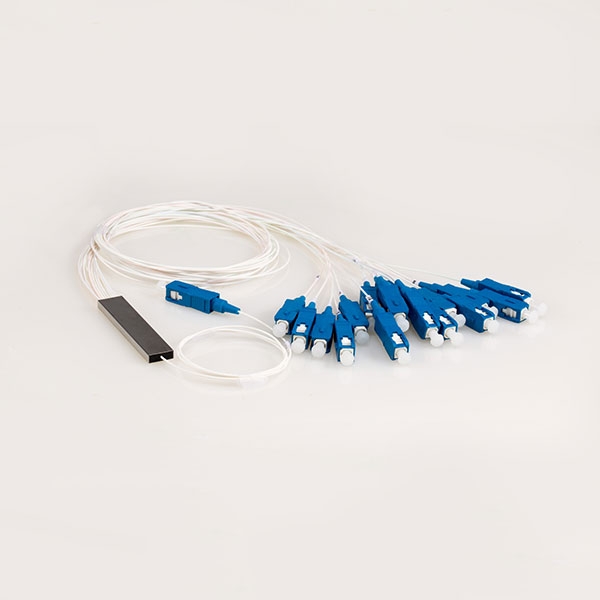

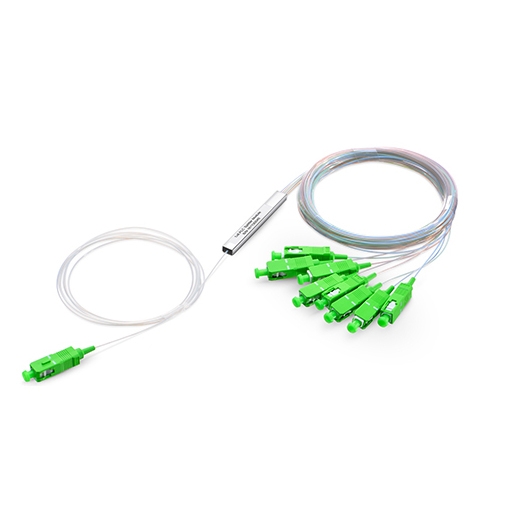

Planar Lightwave Circuit Splitter MiNi Type

Reach Optics' Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Reach Optics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features
  • Low Insertion loss
  • Low PDL
  • Excellent Environmental & Mechanial Stability
  • Qualified Under Telcordia GR-1221 and GR-1209
Applications
  • FTTX (FTTP, FTTH, FTTN, FTTC)
  • Passive Optical Networks (PON)
  • Local Area Networks (LAN)
  • Cable Television
  • Test Equipments
Performance Specifications
Parameter Specification
Operating Wavelength (nm) 1260--1650
Type 1x4 1x8 1x16 2x16 1x32 2x32
Insertion Loss (dB) Max. ≦7.3 ≦11.0 ≦14.0 ≦14.3 ≦18 ≦18.8
Uniformity (dB) Max. ≦1.0 ≦1.0 ≦1.5 ≦2.5 ≦2.0 ≦2.5
PDL (dB) Max ≦0.3 ≦0.3 ≦0.4 ≦0.4 ≦0.45 ≦0.45
Dimensions (H*W*L)(nm) 4x4x38 4x4x40 4x5x50 4x7x60 4x7x60 4x7x70
Directivity (dB) Min 55
Return Loss (dB) Min 50
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85
Fiber Length 1 m or custom length
Fiber Type Corning singlemode SMF-28
Connector Type Custom specified
Specifications may change without notice
Ordering information
Port Wavelength (nm) Input Pigtall Style Input Connector Output Pigtal Style Fiber Length Output Connector Package tube type
102=1x2
104=1x4
108=1x8
