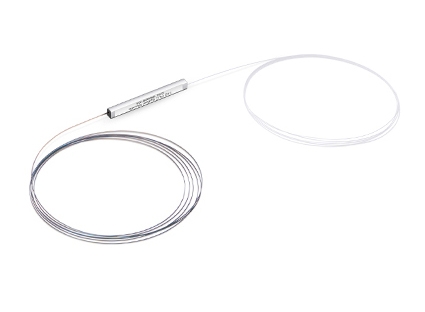

1x4 Bare Fiber PLC Splitter, Singlemode, 250um, No Connector
1x4 Bare Fiber PLC Splitter, Singlemode, 250um, No Connector
  • 1x4 Bare Fiber PLC Splitter, Singlemode, 250um, No Connector
  • Item : R-PLC-1040000
  • Reachoptics offering 1x4 Bare Fiber PLC Splitter, 250um, Singlemode, No connector, with low insertion loss, very good quality.
Product Description

1X4 Bare Fiber PLC Splitter, Singlemode, 250μm Fiber, No Connector

Reachoptics' Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.


Reachoptics' Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Specification

Package Style Steel Tube, Bare Fiber Configuration Type 1x4
Fiber Type Singlemode G657A1 Connector Type None
Fiber Diameter 250μm Fiber Length 1.5M
Insertion Loss ≤7.3dB Return Loss ≥50dB
Loss Uniformity ≤0.8dB Directivity ≥55dB
Polarization Dependent Loss ≤0.3dB Temperature Dependent Loss ≤0.5dB
Wavelength Dependent Loss ≤0.3dB Operating Bandwidth 1260~1650nm
Operating Temperature -40~85°C Storage Temperature -40~85°C
