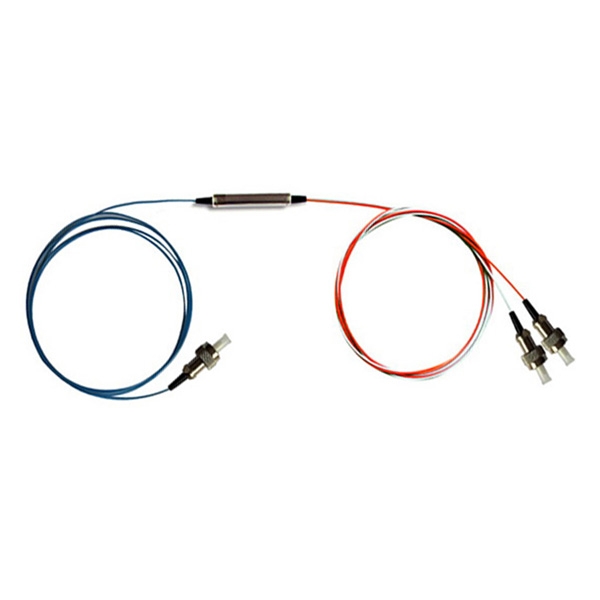

3port 1310/1490/1550 Micro-Optical Wavelength Division Multiplexer

3port 1310/1490/1550 Micro-Optical Wavelength Division Multiplexer

3port 1310/1490/1550 Micro-Optical Wavelength Division Multiplexer
Item : R-MWDM345
3 Port 1310/1490/1550nm WDM:

1. Low Insertion Loss,Wide pass band
2. High Channel Isolation
3. Epoxy-free on optic path
4. Good Quality, OEM Service, 1 years warranty

Product Description

Features

Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path

Applications

Testing Instruments
FTTH Tri-Play System

Performance Specifications

Parameter		FWDM 4/35	FWDM 5/34	FWDM 34/5
Pass Band Wavelength Range (nm)		1480~1500	1540~1560	1260~1360& 1480~1500
Reflection Band 1 Wavelength Range (nm)		1260~1360	1260~1360	1540~1560
Reflection Band 2 Wavelength Range (nm)		1540~1560	1480~1500
Insertion loss (dB)	Reflect Channel	≤0.6
	Pass Channel	≤0.8
Pass Band Rippler (dB)		<0.3
Isolation	Reflect Channel	>15
	Pass Channel	>30
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (ps)		<0.1
Directivity (dB)		>50
Return loss (dB)		>50
Maximum Power Handling (mW)		1000
Operating Temperature (℃)		-20~+80
Storage Temperature (℃)		-40~+85
Package Dimension (mm)		Φ5.5x34 (L38 for 900um Loose tube)

Specifications may change without notice.

Above specification are for device without connector.

Ordering Information

MWDM	Wavelength	Fiber Type	Fiber Length	In/Out Connector
	4/35=1490 pass/1310&1550 reflect 5/34=1550 pass/1310&1490 reflect 34/5=1310&1490 pass /1550 reflect	1=Bare fiber 2=900um loose tube	1=1m 2=2m	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify
