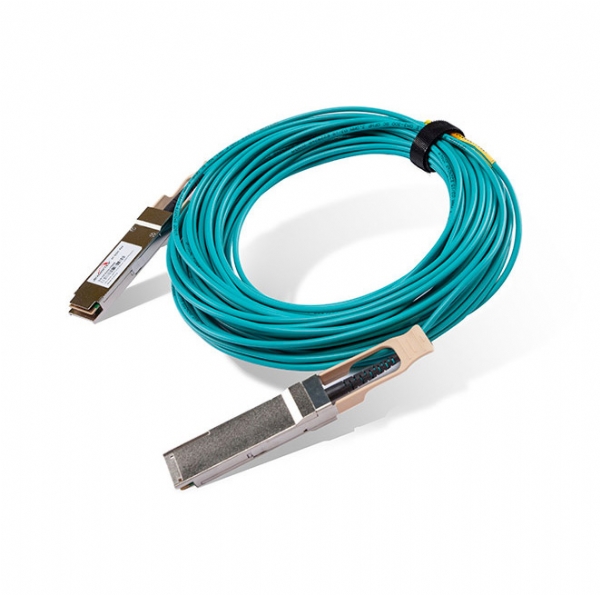

Reachoptics'40G QSFP + Active Optical Cable, 40G QSFP + AOC, MSA SFF-8436,application for data center networking scenarios such as 40G Ethernet and InfiniBand. Reachoptics' 40G QSFP+ AOC Cable 100% Perfect Compatible with Full Range of Brand Servers, Switches, Routers, PDH / SDH Transmitters, EPON, GPON, 10G EPON, 10G GPON, WDM PON Base Stations,etc.

Reachoptics’ QSFP+ active optic cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand DR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.Reachoptics’ QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.Reachoptics’ QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

• Four-channel full-duplex active optical cable
• Transmission data rate up to 11.3Gbit/s per channel
• Reliable VCSEL array technology using multi-mode fiber
• Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
• Low power consumption <1.5W
• Operating case temperature 0°C to +70°C
• 3.3V power supply voltage
• RoHS 6 compliant
• Hot Pluggable QSFP form factor

• Infiniband QDR/DDR/SDR
• Data center
• 40G Ethernet
• 4G/8G/10G Fibre Channel
