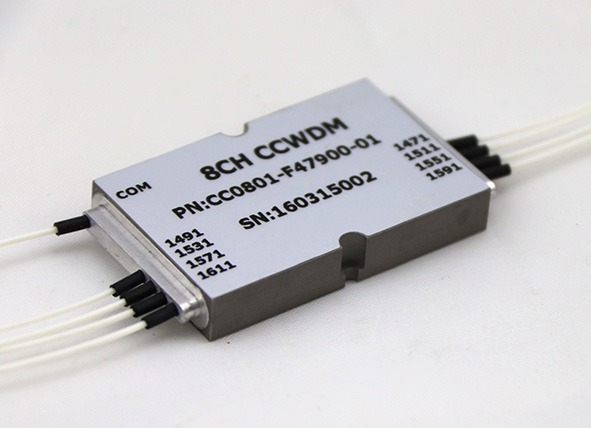

Mini Type CWDM Mux and Demux module

Mini Type CWDM Mux and Demux module
Item : R-MiNi CWDM
1.Telcordia GR-1221 and GR-1209 Compliance
2.Compact size
3.Low insertion loss and PDL
4.Wide Pass Band
5.High Stability and Reliability
6.OEM/ODM

Mini Type CWDM Mux/Demux module

Reachoptics' Mini Coarse Wavelength Division Multiplex (MCWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. The integration of innovative house made compact components and bend insensitive fiber provides excellent thermal stability, low insertion loss, high channel isolation, wide passband, low ripple and epoxy free optical path.The unique fiber pigtail in one side of the module enables ultra compact footprint of customer's high level integration.

All Reachoptics' products are Telcordia qualification tested.

Features

Mini Size
High Reliability
Low Insertion Loss and Better Uniformity
Ultra High Thermal Stability
RoHS Compliant

Applications

CWDM System
CATV Syste
Network upgrading

Specification

Parameter				Unit	Values
Channel Number				CH	4	8	8(+E1)	8(+E2)
Central Wavelength				nm	1270, 1290…1610 or 1271, 1291…1611
Passband		Channels	Min.	nm	+/-6.5
		Upgrade port	Min.				1310+/-50	1260~1457
Isolation	Mux	Adjacent Channel	Min.	dB	30
		Non-adjacent Channel	Min.		40
		Upgrade port	Min.		15
	Demux	Adjacent Channel	Min.		30
		Non-adjacent Channel	Min.		40
		Upgrade port	Min.		15
Insertion Loss	Channels		Max.	dB	1	1.5	1.6	1.8
	Upgrade port		Max.				1.2	1.2
Ripple in Passband			Max.	dB	0.3
Directivity			Min.	dB	50
Polarization Dependent Loss			Max	dB	0.15
Polarization Mode Dispersion			Max	ps	0.10(GD)
Return Loss			Min.	dB	45
Fiber Type					Corning SMF-28 with 900mm loose tube
Fiber Length				m	1.0+/-0.1
Power Handling			Max	mW	500
Operating Temperature				℃	-10~70
Storage Temperature				℃	-40~85
Package Dimension				mm	(L)60x(W)29x(H)10

1. All specifications include the effect of operating temperature and all states of polarization.

2. Values referenced without connectors and insertion loss for a connector-pair is 0.20dB (typ.) and 0.30dB (max.).

3. Fiber length includes rubber boot and excludes the connector.

Order Information

MCWM	Number of Channel	Express Port	1st Channel	Fiber Type	Fiber Length	In/Out Connector
	04=4 Channel 08=8 Channel 16=16 Channel	0=None 1= 1310 (+/-50nm) 2= (1260~1458nm) S=Special	27=1270nm …… 47=1470nm 49=1490nm …… 61=1610nm SS=special	1=Bare fiber 2=900um loose tube	1=1m 2=2m S=Specify	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify
